LinedPipe.Com offers ½ inch through 12 inch PTFE lined pipe and fittings in both carbon steel and stainless steel in standard and special configurations. PTFE liners are produced using a proprietary technology and the highest quality resins. This process creates free sintered liners with superior properties for strength and resistance to permeation.
Pipe liners are ram paste extruded or isostatically molded and have consistent, dimensional accuracy for excellent performance in service. The liners are installed in A587, A106 and A53 steel pipe with rotating A395 ductile iron or A105 forged steel flanges.
We invite you to bring us your toughest plastic lined pipe problems. Have a specific pipe or fitting need that you don't see addressed here? Get in touch with us.
Plastic Liner Thicknesses
LinedPipe.Com Liner Data
Size
LinedPipe.Com PTFE liner
LinedPipe.Com PP & PVDF liner
ASTM F1545 minimum (PTFE)
1/2"
.120"
.125"
.120"
3/4"
.120"
.125"
.120"
1"
.125"
.130"
.120"
1-1/2"
.150"
.140"
.120"
2"
.165"
.150"
.120"
3"
.190"
.180"
.120"
4"
.210"
.190"
.120"
6"
.300"
.225"
.125"
8"
.300"
—
.125"
10"
.330"
—
.125"
LinedPipe.Com liners meet or exceed the ASTM F1545 minimum at every size, and our PTFE liners run well above it from 1-1/2" up, so permeant takes longer to reach the housing and arrives more slowly. PP and PVDF liners are listed through 6"; larger sizes on request.
Carbon Steel Fittings Material Details
All fittings conform dimensionally to ANSI B16.5
Fitting
Body
Stub ends
Flanges
One-piece 90° and 45° elbows
ASTM A587 pipe, or ASTM A53/A106 Gr B steel
—
ASTM A105 forged steel
Welded 90° and 45° elbows
ASTM A234 Gr WPB steel
ASTM A587, ASTM A53/A106 Gr B, or SAE 1010–1030 steel
ASTM A105 forged steel
Tees, instrument tees, crosses, laterals
ASTM A105 machined forged steel, SAE 1010–1030 steel, or ASTM A53/A106 Gr B steel
ASTM A587, ASTM A53/A106 Gr B steel
ASTM A105 forged steel
Concentric reducer
SAE 1010–1030, ASTM A516 Gr 70, ASTM A105, or ASTM A234 steel
ASTM A587, ASTM A53/A106 Gr B, or SAE 1010–1030 steel
ASTM A105 forged steel
Eccentric reducer
ASTM A234 Gr WPB forged steel
ASTM A587, ASTM A53/A106 Gr B steel
ASTM A105 forged steel
Reducing flange
ASTM A105, ASTM A516 Gr 70, or SAE 1010–1030 steel
—
—
Stainless Steel Fittings Material
All fittings conform dimensionally to ANSI B16.5
Fitting
Body
Stub ends
Flanges
One-piece 90° and 45° elbows
ASTM A312 pipe
—
ASTM A182 forged stainless steel
Welded 90° and 45° elbows
ASTM A403
ASTM A312
ASTM A182 forged stainless steel
Tees, instrument tees, crosses, laterals
ASTM A479 machined stainless steel
ASTM A312
ASTM A182 forged stainless steel
Concentric reducer
ASTM A479 or ASTM A403 stainless steel
ASTM A312
ASTM A182 forged stainless steel
Eccentric reducer
ASTM A403 stainless steel
ASTM A312
ASTM A182 forged stainless steel
Reducing flange
ASTM A479
—
—
Quality Standards
All lined pipe, fittings and flanges comply with ASTM F1545 Standard Specification for Plastic Lined Ferrous Metal Pipe, Fittings and Flanges.
The lined fittings we supply are welded in compliance with ASME B31.3 by welders certified to Section IX of the ASME Boiler and Pressure Vessel Code. Lined pipe spools are assembled with rotating flanges over a flared liner and need little welding.
Carbon steel components are primed with rust preventative gray primer and are suitable for top coating in the field. Special coatings are available on request.
All lined spools and fittings are subjected to a minimum 10,000 volt spark test to detect liner defects. Any audible or visible spark is cause for rejection of the liner.
All flared surfaces are protected by wooden end covers to insure their integrity during shipping and handling. Covers must remain in place prior to installation.
Lined fittings carry identifying markings on their flanges in accordance with ASTM F1545. Spools fabricated by Marspec are stamped with the Marspec M on the flange.
Every spool and fitting housing has drilled vent holes as standard. They relieve permeant pressure between the liner and the housing to prevent liner collapse. Couplings that collect the permeant from the vent holes are optional.
Plastic Liner Characteristics
Liner type
Tensile @ yield
Elongation @ yield
Colorant
Operating temperatures
PTFE
3,000 psi, min.
250% min.
None
−20 °F (−29 °C) to 450 °F (232 °C)
PVDF
4,500 psi, min.
10% min.
Black
0 °F (−18 °C) to 275 °F (135 °C)
Polypropylene
3,000 psi, min.
10% min.
Orange
0 °F (−18 °C) to 225 °F (107 °C)
For jacketed or traced service, we recommend specifying PTFE. Steam inside lined pipe is for cleaning or sanitizing, such as steam-out or steam-in-place: PTFE, within its temperature and pressure limits. We do not recommend polypropylene or PVDF for any steam service.
Flange Details
ANSI Class 150 Flange Dimensions
Size
A
B
C
Bolt hole dia.
No. of bolt holes
1/2"
3.5
0.437
2.375
0.62
4
3/4"
3.875
0.5
2.75
0.62
4
1"
4.25
0.562
3.125
0.62
4
1-1/2"
5
0.687
3.875
0.62
4
2"
6
0.75
4.75
0.75
4
2-1/2"
7
0.875
5.5
0.75
4
3"
7.5
0.937
6
0.75
4
4"
9
0.937
7.5
0.75
8
6"
11
1
9.5
0.88
8
8"
13.5
1.125
11.75
0.88
8
10"
16
1.187
14.25
1
12
12"
19
1.25
17
1
12
14"
21
1.38
18.75
1.13
12

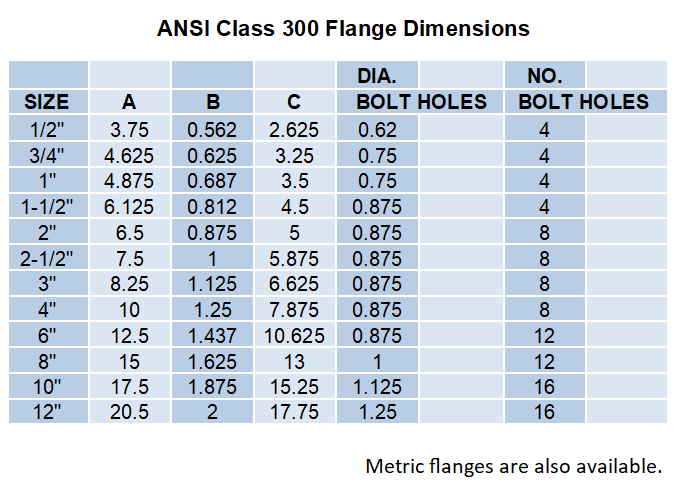

ANSI Class 300 Flange Dimensions
Size
A
B
C
Bolt hole dia.
No. of bolt holes
1/2"
3.75
0.562
2.625
0.62
4
3/4"
4.625
0.625
3.25
0.75
4
1"
4.875
0.687
3.5
0.75
4
1-1/2"
6.125
0.812
4.5
0.875
4
2"
6.5
0.875
5
0.75
8
2-1/2"
7.5
1
5.875
0.875
8
3"
8.25
1.125
6.625
0.875
8
4"
10
1.25
7.875
0.875
8
6"
12.5
1.437
10.625
0.875
12
8"
15
1.625
13
1
12
10"
17.5
1.875
15.25
1.125
16
12"
20.5
2
17.75
1.25
16
A = outside diameter · B = thickness · C = bolt circle.Metric flanges are also available.
Recommended Bolt & Stud Lengths
Flange size (150 lb)
Bolt or stud dia.
No. of bolt holes
Bolt length*
Stud length*
1"
1/2"
4
2-3/4"
3-1/4"
1-1/2"
1/2"
4
3"
3-1/2"
2"
5/8"
4
3-1/2"
4-1/4"
3"
5/8"
4
4"
4-1/2"
4"
5/8"
8
4"
4-1/2"
6"
3/4"
8
4-1/2"
5-1/4"
8"
3/4"
8
4-3/4"
5-1/2"
10"
7/8"
12
5-1/4"
6"
12"
7/8"
12
5-1/2"
6-1/4"
* Including a flat washer on each side.
Recommended Fastener Torque
Recommended Bolt Torque (ft·lb)

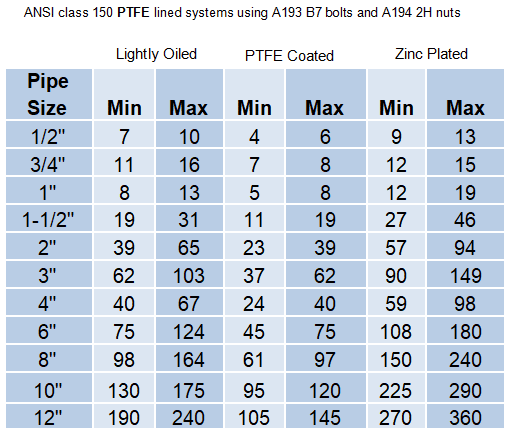

ANSI class 150 PTFE lined systems usingA193 B7 bolts and A194 2H nuts
Pipe size
Lightly oiled, min
Lightly oiled, max
PTFE coated, min
PTFE coated, max
Zinc plated, min
Zinc plated, max
1/2"
7
10
4
6
9
13
3/4"
11
16
7
8
12
15
1"
8
13
5
8
12
19
1-1/2"
19
31
11
19
27
46
2"
39
65
23
39
57
94
3"
62
103
37
62
90
149
4"
40
67
24
40
59
98
6"
75
124
45
75
108
180
8"
98
164
61
97
150
240
10"
130
175
95
120
225
290
12"
190
240
105
145
270
360
ANSI class 150 PP lined systems usingA193 B7 bolts and A194 2H nuts
Pipe size
Lightly oiled, min
Lightly oiled, max
PTFE coated, min
PTFE coated, max
Zinc plated, min
Zinc plated, max
1"
13
17
8
10
19
25
1-1/2"
31
41
19
25
46
59
2"
65
85
39
51
94
123
3"
103
134
62
80
149
194
4"
103
134
62
80
149
194
6"
124
161
75
97
180
234
The maximum recommended torque values are suggested for lined systems operating at or near the maximum recommended pressures and temperatures. Systems operating under less severe conditions can in general experience leak-free performance using lower torque values. Any time gaskets or spring type washers are used, we suggest using the minimum recommended torque value and increasing only to obtain satisfactory sealing. For systems that will require frequent disassembly, start at the minimum recommended torque to avoid distortion of the plastic face.
Recommended Torque Procedures
The same general techniques used to install flanged carbon steel piping systems can be applied to plastic lined piping systems.
When assembling flange connections, always use a full complement of clean, new high strength A193 B7 bolting. If using stainless steel bolting, use A193 (or A320) Grade B8M Class 2 bolts with A194 Grade 8M nuts. If other bolting materials are used, the end user must ensure that the new bolting material strength properties exceed the calculated bolt stress values to be generated in making the piping connection.
Always use flat washers on both sides of the connection.
Tighten the flange bolts with a calibrated torque wrench to the specified bolt torques. NOTE: if using anti-seize compounds, the torque values will be different.
Tighten the flange bolts with a torque wrench using a crisscross pattern that alternately tightens the bolts located 180° apart.
Using this pattern, tighten the bolts in 20% increments of the final bolt torque until 80% of the final bolt torque has been achieved.
For tightening to the final torque values, tighten the bolts sequentially clockwise once around the flange. This will help insure that the bolts are evenly stressed.
Care should be taken to prevent over-torqueing, which will cause damage to the sealing surfaces.
NOTE: when bolting together dissimilar materials, always tighten to the lowest recommended torque of the components in the joint. Using higher torques may cause excessive deformation of the "softer" material in the joint. Install a ½" thick spacer between plastic lined pipe or fittings and other plastic lined components, particularly valves, if the diameters of the raised faces are different. Belleville washers are not recommended for use with PTFE lined products.
Re-torqueing
A re-torque should be applied a minimum of 24 hours after the initial torque or after the first thermal cycle. This allows for seating of the plastic and for relaxation of the bolts. Torqueing should only be done on the system in the ambient, cooled state, never while the process is at elevated temperature or excessive force could be applied to the plastic faces. Never disassemble a flange joint in a hot system. Wait until the system has cooled to ambient temperature.
Hydrotesting
Normally, after initial torque and re-torque, a hydrotest should be performed following ANSI requirements. If a flange leaks, first check the torque values and then tighten in 10% increments over the specified bolt torques until sealed. However, if 150% of the specified torque value is reached and the flange joint still leaks, stop and disassemble the flange joint. Something else is likely wrong such as a scratched plastic face. Only after the hydrotest has been successfully completed and any leaks corrected can the pipeline be signed off and commissioned.
Annual Re-torqueing
Re-torqueing should be done at least annually thereafter, especially if the process line experiences elevated temperatures or thermal cycling. Torqueing should only be done on the system in the ambient, cooled state and never while the process is at an elevated temperature; excessive force will likely be applied to the plastic faces.
