Flange Spray Shields
Spray Shields for Lined Pipe in Acid and Caustic Service
A lined pipe protects the pipe. A spray shield protects the people beside it. The flanged joint is where a lined line most often leaks, and a shield wrapped around the joint catches the spray, shows it, and drains it or turns it into a drip, which gives maintenance the time to isolate the line. We supply Drake Specialties safety spray shields with our lined piping systems: for every flange on the line and for the valves, expansion joints and unions between them. Spray shields are also called flange guards, splash guards or flange safety covers.
On hydrofluoric acid lines the shield is part of the specification rather than an afterthought: every flange gets one. Chlorine and bromine lines get the same shields. Chlorine, hypochlorite, bromine and hydrogen peroxide lines also take ball valves with a vented ball, for another reason: liquid trapped in a closed ball expands or gives off gas and can overpressure the valve. Our hydrofluoric acid page covers the piping side.
Shields are quoted line by line with the pipe and fittings and valves they protect, on the same quote, and ship with the order from Fairhope.

Choosing a Shield
Fabric shields for most chemical service; 316 stainless for steam, flammables, high temperature and high pressure. Name the fabric, or send the chemical, concentration and maximum temperature and we will pick it with Drake.
Fabric shields
PTFE shields come two ways: PTFE-coated woven fiberglass (clear, standard, premium and single-ply premium) or 100% woven PTFE with no glass cloth. Polypropylene, PVC and polyethylene are Drake's economy series, matched to the chemical and temperature.
| Fabric | Maximum temperature | Inspection and leak indication | Notes |
|---|---|---|---|

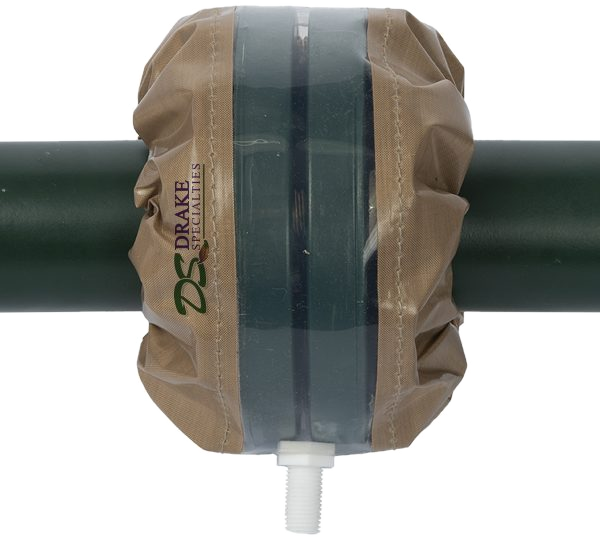

| Clear PTFE | 400 °F (204 °C) | Clear FEP center strip for inspection; optional ½" PTFE drain nipple | Sides of premium PTFE-coated glass cloth; Drake recommends it for watching expansion-joint bellows |
| Standard PTFE | 450 °F (232 °C) | Solid cloth, leak-indicating patch | PTFE-coated glass cloth, reinforced 3-ply with a fourth protective insert; Drake's most popular style |
| Premium PTFE | 450 °F (232 °C) | Solid cloth, leak-indicating patch | PTFE-coated glass cloth, 3-ply, with the highest PTFE content, for extreme service and long life |
| Single-ply Premium PTFE | 450 °F (232 °C) | Solid cloth, leak-indicating patch | One-layer economy version of the premium coated cloth |
| 100% woven PTFE | 500 °F (260 °C) | Solid cloth, leak-indicating patch | Woven PTFE with no glass cloth, 100% PTFE thread and draw cord; for the most severe service, and our choice for hydrofluoric acid |
| Polypropylene | 200 °F (93 °C) | Solid cloth, leak-indicating patch; clear-center model available | Solid woven polypropylene, 3-ply with a fourth insert; the lower-cost shield for hydrofluoric acid lines near ambient (200 °F [93 °C] in HF on Drake's chart) |
| PVC | 170 °F (77 °C) | Clear-center or all-clear models; color-changing patch | Reinforced vinyl, 3-ply, safety orange or other colors; new plant start-ups, water treatment, food plants |
| Polyethylene | 170 °F (77 °C) | Transparent; optional leak-indicating patch | Reinforced 3-ply, the economy choice for milder service |
All fabric shields close with hook-and-loop fastening and a draw cord and are fitted by one person without tools. Solid-cloth shields carry a replaceable pH-indicating patch: toward red for an acid leak, toward green for an alkali. The PTFE fabrics are the ones Drake rates fire resistant. Source: Drake Specialties flange shield pages at drakespec.com and the fabric spray shield brochure.

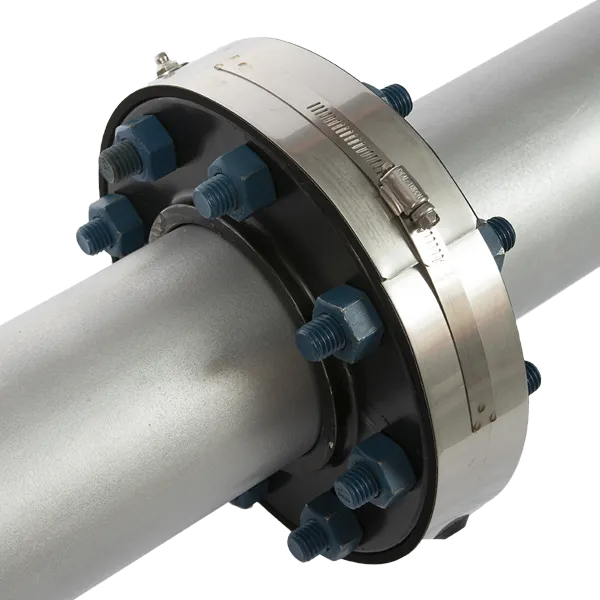

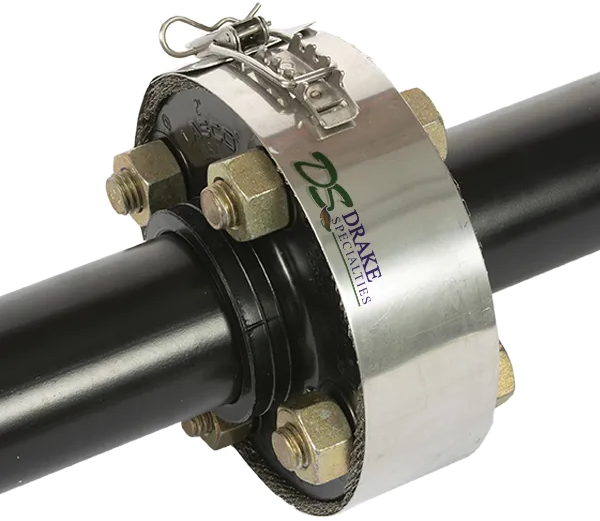

316 stainless shields and band protectors



316 stainless, 24 gauge; 304 to order. Valve shields fit ball, butterfly, plug and check valves and gate and globe bonnets with the handle or handwheel still usable. Source: Drake Specialties metal spray shield and flange band protector brochures.
Chemical resistance guide · maximum service temperature in each medium, °F (°C)
| Medium | Polyethylene | PVC | Polypropylene | Clear PTFE | Standard / Premium PTFE | 100% woven PTFE ‡ | 316 stainless † |
|---|---|---|---|---|---|---|---|
| Ammonia | 170 (77) | 170 (77) | 200 (93) | 200 (93) | 450 (232) | 500 (260) | 500+ (260+) |
| Ethylene dichloride | n/r | n/r | 75 (24) | 75 (24) | 450 (232) | 500 (260) | 500+ (260+) |
| Hydrochloric acid, to 35% | 140 (60) | 140 (60) | 200 (93) | 400 (204) | 450 (232) | 500 (260) | 500+ (260+) |
| Hydrofluoric acid, to 85% | 75 (24) | 75 (24) | 200 (93) | n/r * | n/r * | 500 (260) | 500+ (260+) |
| Nitric acid, to 30% | 150 (66) | 150 (66) | 150 (66) | 300 (149) | 450 (232) | 500 (260) | 500+ (260+) |
| Oleum | n/r | n/r | n/r | 75 (24) | 450 (232) | 500 (260) | 500+ (260+) |
| Sodium hydroxide, to 50% | 170 (77) | 170 (77) | 200 (93) | 300 (149) | 450 (232) | 500 (260) | 500+ (260+) |
| Sulfuric acid, to 30% | 170 (77) | 170 (77) | 200 (93) | 300 (149) | 450 (232) | 500 (260) | 500+ (260+) |
Shield exposure limits for the media listed, not a piping material guide. n/r = not recommended. * HF attacks the glass cloth under the coating, not the PTFE. For HF we recommend the 100% woven PTFE shield, or polypropylene, which the guide rates to 200 °F (93 °C), on lines near ambient. ‡ The 100% woven PTFE column is ours, not Drake's: the guide predates that shield. Drake rates the shield to 500 °F (260 °C), and with no glass cloth that limit holds in every medium listed. † The guide gives 316 stainless 500+ for every medium: that is the shield's temperature limit, not a chemical rating, so check 316 against the medium; it is attacked by hydrochloric and hydrofluoric acid. Other media: send the chemical, concentration and maximum temperature. Source: Drake Specialties fabric spray shield brochure, except the 100% woven PTFE column.
Shields for Every Joint
- Flange shields, fabric or 316 stainless, for every flange size and rating: ASME, API, DIN and PN, JIS and others, and non-standard sizes to dimensions.
- Valve shields for ball, check, butterfly, gate, globe, plug, diaphragm and control valves; bonnet shields let gate and globe stems travel.
- Expansion joint shields for rubber, stainless and PTFE bellows of any make, allowing the lateral movement; clear PTFE for watching the bellows.
- Fitting and union shields for elbows, tees, unions and couplings, including hammer unions.
- Pipe end covers in vinyl or PTFE fabric for safety relief valve and rupture disc vent outlets, straight or angled, any diameter.
- Specialty covers for actuators, pumps, camlocks, gauges and instruments, standard and custom.
What to tell us
- Flanges: size and rating
- Valves: size, rating, type, make and model, and whether flanged, socket-weld or threaded
- Expansion joints: size, make and model, number of convolutions or overall length
- Fittings: size and type
- Fabric: name it, or give the chemical, concentration and maximum temperature
- Options: drain nipple, clear window, pH patch, color
Ask about spray shieldsSpray shield datasheet (PDF)
Or call (251) 625-4949. The quote form takes shields line by line with the rest of the system.
FAQ: Spray Shields on Lined Pipe
Do I need a spray shield on every flange?
On lines carrying acid, caustic or anything that would hurt someone standing beside the joint, the usual practice is a shield on every flanged joint at working height or above a walkway, and on the valves, expansion joints and unions in the same line. Many plants shield the whole line; the cost of a shield is small against one spray-out.
Will a shield hide a leak?
No. A clear PTFE shield shows the joint through its window, and a solid shield carries a pH patch that turns toward red for an acid leak and toward green for an alkali. Either way the leak shows at a glance, and the shield has already contained it. A solvent or near-neutral leak leaves the patch unchanged, so on those lines choose a clear shield.
What happens to the liquid a shield catches?

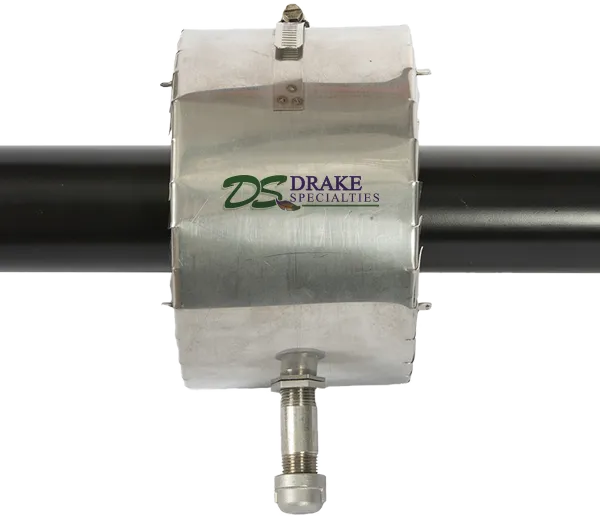

A fabric shield holds it; the clear PTFE shield can be ordered with a PTFE drain nipple, so a caught leak drains to a safe place instead of pooling against the flange. Stainless shields disperse the spray to a drip and can take a drain nipple too.
Can a shield be reused after a leak?
Yes. The pH patch is replaceable: fit a new patch, refit the shield. The fabrics are chemical, UV and weather resistant, and the PTFE fabrics are also fire resistant; they are meant for years outdoors.
Which fabric for hydrochloric acid, and which for hydrofluoric?
For hydrochloric acid to 35%, PTFE: Drake's guide rates the clear PTFE shield to 400 °F (204 °C) and the standard and premium PTFE shields to 450 °F (232 °C). For hydrofluoric acid, the 100% woven PTFE shield: it has no glass cloth, PTFE itself is not attacked by HF, and it is rated to 500 °F (260 °C), so it is our recommendation for HF lines. Drake's guide predates that shield. The guide does not recommend the PTFE-coated shields for HF, because HF attacks the glass cloth under the coating. It rates polypropylene to 200 °F (93 °C) in HF to 85%, and polypropylene is the lower-cost choice for HF lines near ambient. Not 316 stainless for either acid: the guide lists it at 500+ for every medium, which is a temperature limit, not a chemical rating, and 316 stainless is attacked by hydrochloric and hydrofluoric acid.
Do you stock spray shields?
Shields are made to the flange size and rating, so we quote them with the pipe, fittings and valves they protect and ship them with the order. Send the sizes, the media, the concentration and the temperature and we will come back with the fabric and the price.
Spray shields by Drake Specialties, Lafayette, Louisiana, supplied by LinedPipe.Com with lined piping systems. Product data from Drake Specialties literature as cited; confirm sizes and ratings with the order acknowledgement.
